Controlled inside diameter pipe designed to be used with insert fittings.

ASTM D-2239 (SIDR-PR) Based on Controlled Inside Diameter

This specification covers polyethylene pipe made in standard thermoplastic pipe inside dimension ratios and pressure rated for water at 73.4°F. Pipe manufactured under this specification is based on a controlled inside diameter. For a given nominal size, the inside diameter will be constant regardless of the pressure rating.

Pipe manufactured to this specification is described using a prefix-diameter ratio. The prefix for ASTM D-2239 is SIDR.

The most common ratios under this specification are SIDR-19, SIDR-15, SIDR-11.5, SIDR-9, and SIDR-7. The lower the SIDR number, the thicker the wall and the higher the pressure rating. The definition of SIDR (Standard Inside Dimension Ratio) is the specific ratio of the average specified inside diameter to the minimum specified wall thickness.

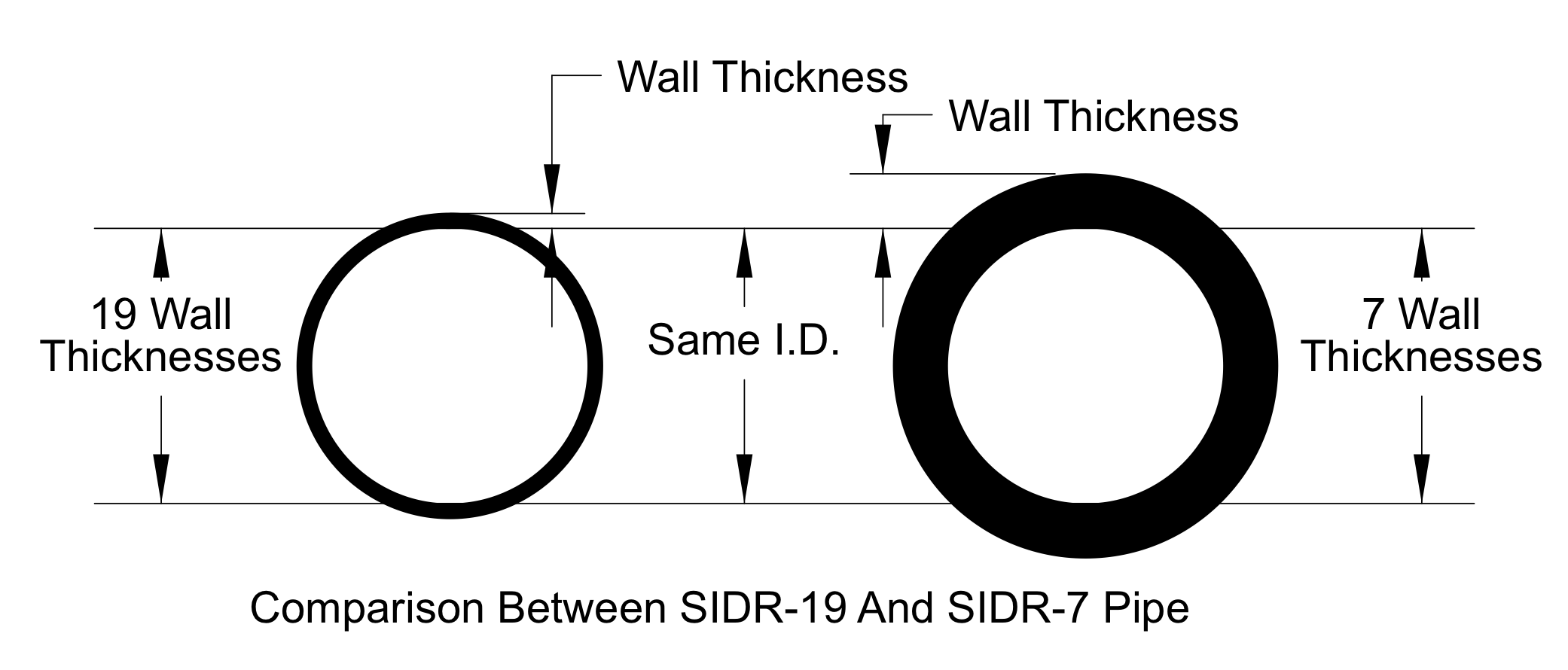

Sidr compare

Standard Inside Dimension Ratio SIDR-15 125PSI NSF Certified

Standard Inside Dimension Ratio SIDR-15 125PSI NSF Certified
Nominal Size Nominal I.D. Min. Wall Thickness Wt / 100' Standard Coil Lengths
3/4" 0.824" 0.060" 7.2#
100'
300'
400'
500'
1000'
1" 1.049" 0.070" 10.7#
100'
300'
400'
500'
1000'
1-1/4" 1.380" 0.092" 18.2#
100'
300'
400'
500'
1000'
1-1/2" 1.610" 0.107" 24.9#
100'
300'
400'
500'
1000'
2" 2.067" 0.138" 41.1#
100'
200'
300'
500'

Standard Inside Dimension Ratio SIDR-11.5 160PSI NSF Certified

Standard Inside Dimension Ratio SIDR-11.5 160PSI NSF Certified
Nominal Size Nominal I.D. Min. Wall Thickness Wt / 100' Standard Coil Lengths
1/2" 0.622" 0.060" 5.5#
100'
300'
400'
500'
1000'
3/4" 0.824" 0.072" 8.6#
100'
300'
400'
500'
1000'
1" 1.049" 0.091" 14.0#
100'
300'
400'
500'
1000'
1-1/4" 1.380" 0.120" 24.3#
100'
300'
500'
1000'
1500'
1-1/2" 1.610" 0.140" 33.1#
100'
300'
500'
1000'
1500'
2" 2.067" 0.180" 54.5#
100'
200'
300'
500'
1000'

Standard Inside Dimension Ratio SIDR-9 200PSI NSF Certified

Standard Inside Dimension Ratio SIDR-9 200PSI NSF Certified
Nominal Size Nominal I.D. Min. Wall Thickness Wt / 100' Standard Coil Lengths
3/4" 0.824" 0.092" 11.4#
100'
300'
400'
500'
1000'
1" 1.049" 0.117" 18.4#
100'
300'
400'
500'
1000'
1-1/4" 1.380" 0.153" 31.6#
100'
300'
500'
1000'
1500'
2000'
2500'
1-1/2" 1.610" 0.179" 43.2#
100'
300'
500'
1000'
1500'
2000'
2" 2.067" 0.230" 71.0#
100'
200'
300'
500'
1000'
1500'

Standard Inside Dimension Ratio SIDR-7 250PSI NSF Certified

Standard Inside Dimension Ratio SIDR-7 250PSI NSF Certified
Nominal Size Nominal I.D. Min. Wall Thickness Wt / 100' Standard Coil Lengths
3/4" 0.824" 0.118" 15.0#
100'
300'
400'
500'
1000'
1" 1.049" 0.150" 24.3#
100'
300'
400'
500'
1000'
1-1/4" 1.380" 0.197" 41.8#
100'
300'
500'
1000'
1500'
2000'
2500'
1-1/2" 1.610" 0.230" 56.9#
100'
300'
500'
1000'
1500'
2000'
2" 2.067" 0.295" 93.8#
100'
200'
300'
500'
1000'
1500'
