NuMex has been manufacturing high density polyethylene
pipe in the same other worldly Roswell, NM location since 1970. We manufacture pipe to all three

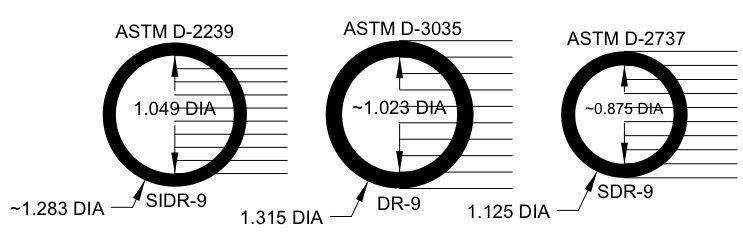

of the major ASTM specifications. Outside diameter controlled
Fusible Pipe - ASTM D-3035 (DR)

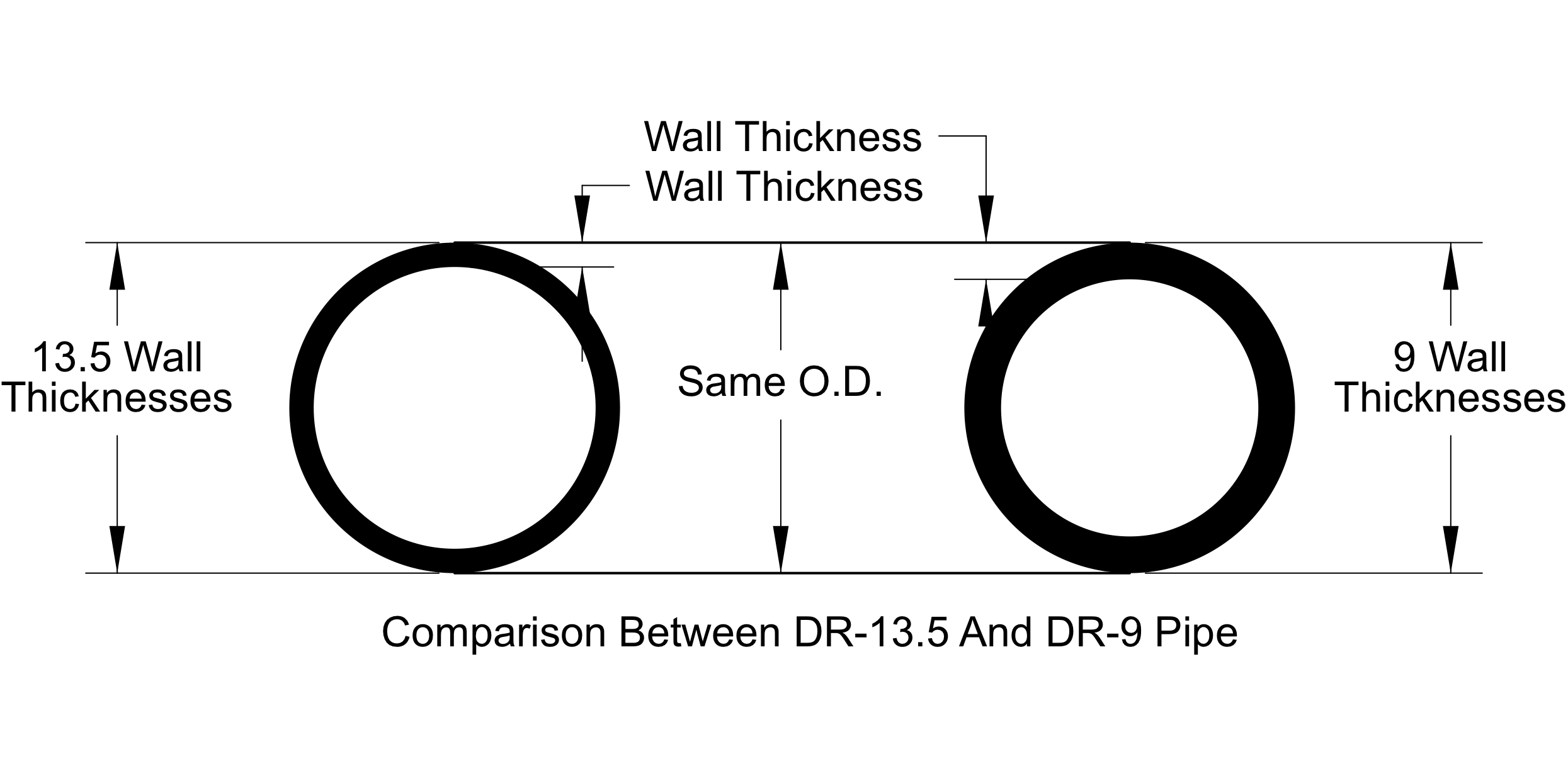

Regardless of the pressure rating and wall thickness, the outside
diameter of our fusible pipe is the same for a nominal size. NuMex manufactures
pipe to this specification in
Pipe Designed For Fittings - ASTM D-2239 (SIDR)
This specification covers polyethylene pipe made in standard thermoplastic pipe inside dimension ratios and pressure rated for water at 73.4°F. Pipe manufactured under this specification is based on a controlled inside diameter. For a given nominal size, the inside diameter will be constant regardless of the pressure rating. The lower the SIDR number, the thicker the wall and the higher the pressure rating.
Pipe manufactured to this specification is described using a prefix-diameter ratio. The prefix for ASTM D-2239 is SIDR.
Regardless of the pressure rating and wall thickness, the inside
diameter of our inside controlled pipe is the same for a nominal size. NuMex manufactures
pipe to this specification in
Copper Tube Size - ASTM D-2737 (SDR)
Our copper tube size tubing is manufactured to ASTM D-2737 and is designed
to match and mate to standard copper tubing. NuMex manufactures
pipe to this specification in
